SANKI-PRIME 56

Standard fuel dispenser
( Art-Design; Hose Retractor; 15 Inch Touchscreen; Multimedia Operation; Modularization )
* Art design-best exterior construction and good appearance meter
* Trustable highly precise metrology equipment
* High performance for electronic parts

Features:
* Art design-best exterior construction and good appearance meter
* Trustable highly precise metrology equipment
*
High performance for electronic parts
* High quality explosion-proof motor with strong ability against power fluctuation
* Specially designed filtering systems with build-in re-cleanable filter
* With rich functions expansion like POS for smart card and bank card
* Flexible fuel application for gasoline, diesel, and kerosene etc.
* Works well in harsh conditions, like extremely cold, hot, humid, and sand-stormy environment
* Easy installation with forklift
* 15 inch touchscreen– AD and promotion
* Voice intercom
 and hose retractor

Featured parts :


Optional Configuration:

Printer, IC card, ID card, Hose retractor, communication for FMS, vapor recovery, break away,

swivel, emergency stop, LED light,ect

Technical specifications:

Accuracy for the unit

±0.25%

Flow rate

5-50L/min, 5-80L/min

Ambient temperature

-25℃~ +50℃; -45℃~ +50℃

Relative humidity

20% ~ 95%

Unit noise rate

< 70dB (A);

Inlet vacuum rate for suction pump

≧54kPa

Communication

With RS485 port, or current loop

Power supply

AC 110V( -15%~+10%),(50/60±1)Hz
  AC 220V( -15%~+10%),(50/60±1)Hz ;
AC 380V( -15%~+10%),(50/60±1)Hz

Digit of sale

7digits (decimal points can be adjusted )

Digit of volume

6digits (decimal points can be adjusted )

Digit of unit price

5digits (decimal points can be adjusted )

Totalizer of sale

0~42949672.95

Totalizer of volume

0~42949672.95

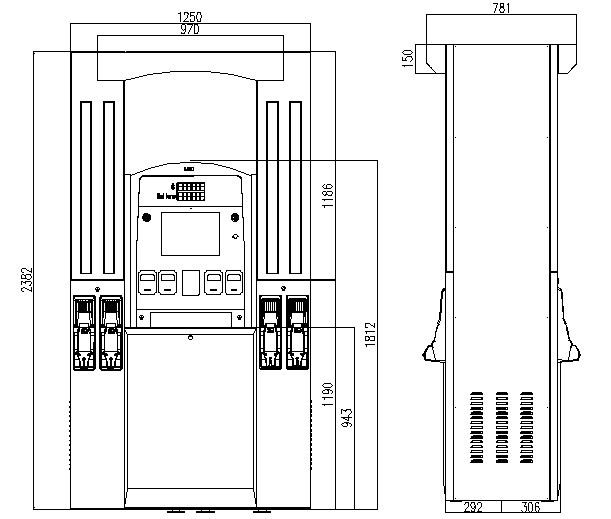

Dimensions

Model

Product

Nozzle

Display

Package(mm)

Gross weight

SK56G/QF422B

2

4

2

1/side

      1330*900*2520

540/465

SK56G/QF632B

3

6

2

1/side

      1330*900*2520

620/505

SK56G/QF842B

4

8

2

1/side

      1330*900*2520

705/555

G: Gear pump     Q: Submersible pump
