SK-56

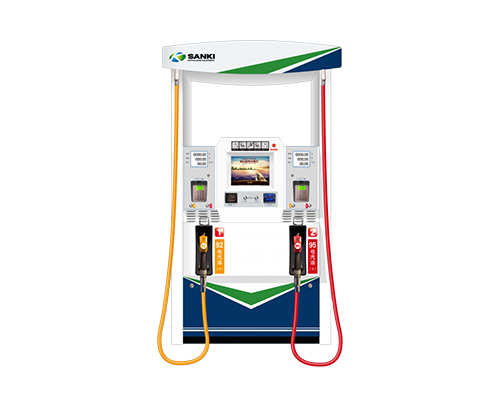

SK-56 Standard Fuel Dispenser
( Printer; IC card; Communication for FMS; Break away; Emergency stop ect. )

* Best exterior construction and good appearance

* Trustable highly precise metrology equipment

* High performance for electronic parts

Features:

* Best exterior construction and good appearance

* Trustable highly precise metrology equipment

* High performance for electronic parts

* High quality explosion-proof motor with strong ability against power fluctuation

* Specially designed filtering systems with build-in re-cleanable filter

* With rich functions expansion like POS for smart card and bank card

* Flexible fuel application for gasoline, diesel, and kerosene etc.

* Works well in harsh conditions, like extremely cold, hot, humid, and sand-stormy environment

 Categories: Standard Series, Fuel Dispenser

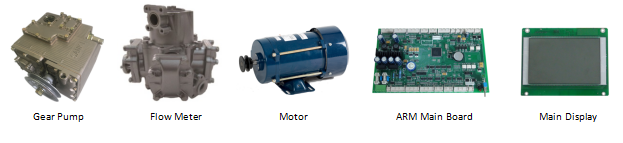

Featured parts :

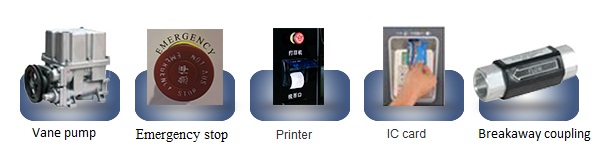

Optional Configuration:



Technical specifications:

Accuracy for the unit ±0.25%
Flow rate 5-50L/min
Ambient temperature -25℃~ +55℃; -45℃~ +50℃
Relative humidity 20% – 95%
Unit noise rate < 70dB (A);
Inlet vacuum rate for   suction pump ≧54kPa
Communication With RS 485 port, or current loop
Power supply AC 220V(   -15%~+10%),(50/60±1)Hz;

AC 380V( -15%~+10%); (50/60±1)Hz

Digit of sale 7digits (decimal points can be adjusted )
Digit of volume 6digits (decimal points can be adjusted )
Digit of unit price 5digits (decimal points can be adjusted )
Totalizer of sale 0~42949672.95
Totalizer of volume 0~42949672.95

Model Range

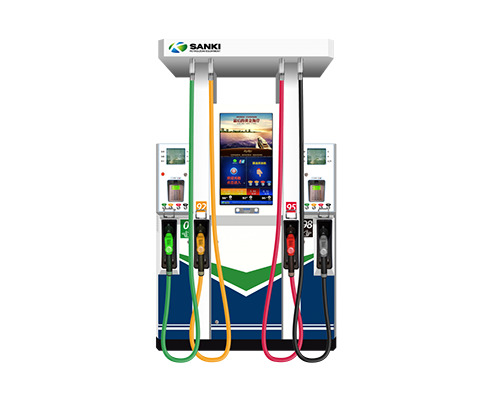

SK56ZF424A                                       SK56ZF632B

   Model Product Nozzle Display Package(mm) Gross weight
SK56Z/G/QF424B 2 4 2 1/side 1318*820*2480 367/397
SK56Z/G/QF632B 3 6 4 2/side 1318*820*2480 427/457
SK56Z/G/QF422B 2 4 2 1/side 1318*820*2480 367/397/315
SK56Z/G/QF632B                3 6 2 1/side 1318*820*2480 427/329
SK56Z/G/QF842B 4 8 2 1/side 1318*820*2480
Z :   Vane pump   G: Gear pump  Q: Submersible pump

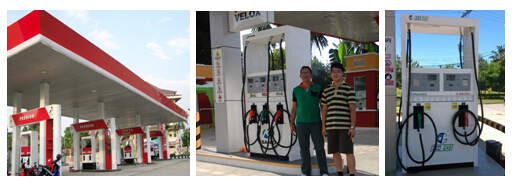

Case
